IBM Quick Deployer modify Install Applications process to use an existing database server updated.png

Authors: ThomasPiccoli, KennethThomson, JenniferLiu, KenTessier, ClareCarty
Build basis: CLM 6.0, CLM 6.0.x, CE 6.0.x

Out of the box the Install Applications process will install a new DB2 database server and configure it for use by the applications.
If you prefer to use your own existing DB2 or Oracle database server you should modify the Install Applications process as described below.

By following these instructions it is assumed that after modification all CLM or CE installations will use your own existing DB2 or Oracle database server.

An existing DB2 or Oracle database server should only be used with one application instance or conflicts could arise that corrupt the data. This means that each deployment will require that you provide a separate DB2 or Oracle database server. Each DB2 or Oracle database server that you provide will also require the installation of a UCD agent so it can be mapped to an environment later as described in the Environment Construction topic.

Modify Install Applications process

  1. Prior to changing the Install Applications process you should make a copy of the original version. Open the application Processes tab and click*Copy* to create a copy of the Install Applications process

    copy Install Applications

  2. With the application Processes tab open select Install Applications

    select Install Applications

  3. If not already open, open the process Design tab
    select the Install Database step and delete by clicking on the [X]

    delete Install Database step

  4. Confirm that you want to delete the step by clicking OK

    confirm delete

  5. Hover the mouse over the Prepare System step and drag the connecting line to the Create Database step

    rejoin steps

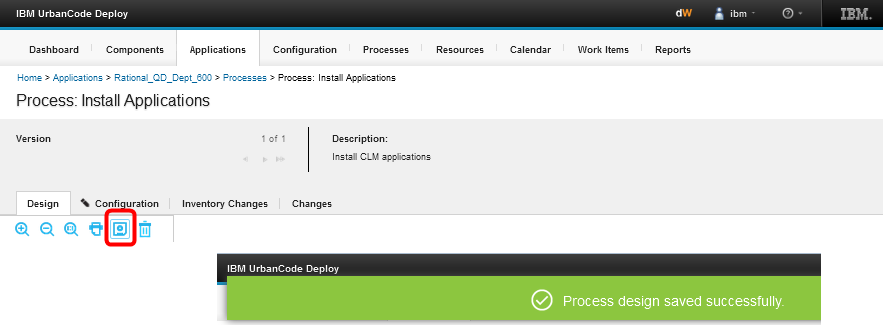

  6. Save the changes by clicking the save icon and waiting for the confirmation banner

    save changes



  • Throughout the IBM Quick Deployer wiki the screen captures are for reference only.
    In some cases if the functionality they display has not changed in the latest release they will be from a previous release
