Advanced current links information section
The Current links information section provides the drop-down list of containers that are loaded onto the view canvas. You can select the container from the list, and see the links details in the Current links information section itself without navigating to the view canvas. To access the drop-down list, complete the following steps: 1. Open the view in edit mode. 2. Right-click the container, and then click Show current links information. The drop-down list for container is displayed. The container drop-down list displays container name with the container Id. It helps you to distinguish between two containers of same artifact type. Image of same containers and drop-down list:
|
|
Customized count and percent UI types
ENI provides separate UI types, such as Count and Percent for all the artifacts. For each node definition, you can see separate count and percent UI type. With these UI types, you can:

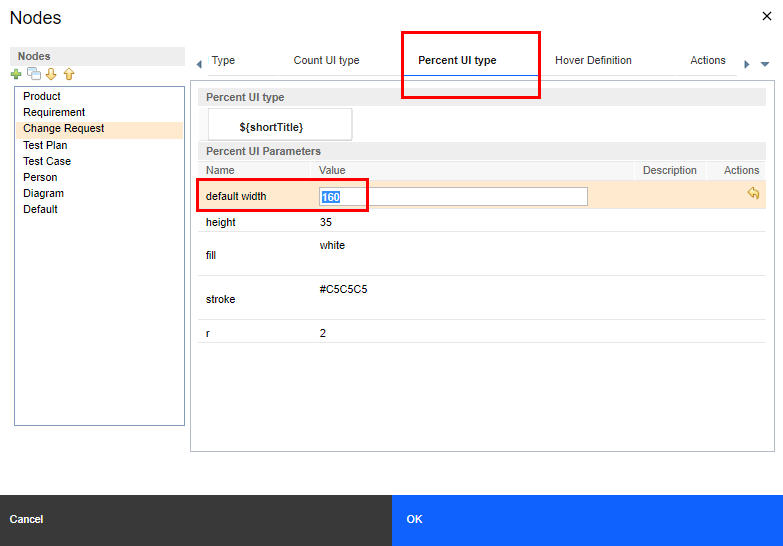

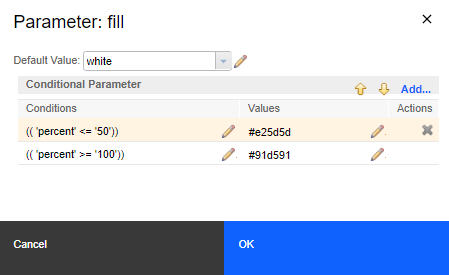

1. Open the view in edit mode. 2. Right-click the container, and then click Edit node. In the Nodes dialog box, two separate tabs for Count UI Type and Percent UI Type are shown. Image of Count and Percent UI Type: 3. On the Percent UI Type tab, edit the required parameter value. Image of editing value for default width field:  4. Apply the conditional formatting. You can add the conditional formatting for fill and stroke parameters in both UI types. a. Click the pencil icon that is next to the required UI parameter. Image of editing fill UI parameter :  b. In the Parameter: fill window, click Add. The Conditions window opens. c. Select the required operator from the list and specify the value. Image of specifying condition:  d. Select the required fill color from the drop-down list, and then click OK to close the Conditions window. You can also use the Edit Value option that is available next to the Color field to use custom colors. Image of editing color:  You can define multiple conditions by using step c and d. Image of defined conditions:  e. Click OK to close the Parameter: fill window. 5. Click OK to close the Nodes dialog box. 6. Right-click the container, and then click Calculate Percent. For more information about calculating percentage of artifacts, see calculating percentage of artifacts. Note: Based on the defined conditions, you can see the count of the node by using the Show Count option . Result: The container shows the percentage of the artifact based on the defined conditions, and the node that is filled with the specified color. Image of percentage of artifcts:  To restore the artifacts in a container, right-click the container, and click Show Artifacts. |
