Unique ID dependent on an other object attribute

llandale - Fri Jun 22 12:58:24 EDT 2012
probeAttr_ has two parameters Object and string; change your period to a comma:

• obj.attrDXLName = "SR-" probeAttr_(obj, "Absolute Number")

SystemAdmin - Fri Jun 22 13:18:34 EDT 2012
Thanks,
I've already figured it out in \lib\dxl\utils\attrutil.inc file.
But I still get a failure with the if-condition. In my Module the attribute "isRequirement" is of type boolean. So if obj."Requirement" is true for an object, operation "obj.attrDXLName = "SR-" probeAttr_(obj, "Absolute Number")" will be executed, right?

regards
Alex

llandale - Fri Jun 22 13:48:50 EDT 2012
Oh yes. does not retrieve the value by itself, its an "AttrRef__". You need to induce it to retrieve the value, which you can do with the = sign, or contatenate it or type it. I'm thinking any of these will work:

1. bool IsReq = obj."IsRequirement"; if (IsReq).. // assigning it retrieves it
2. if (bool obj."IsRequirement") .. // type it forces retrieval
3. if (obj."IsRequirement" "" == "True") ... // Retrieve and convert to string

SystemAdmin - Fri Jun 22 15:42:27 EDT 2012

Ok, that seems to function with the following result.
I got now:
-R-E- DXL: <Line:4> unassigned variable (obj)
-I- DXL: execution halted

Here the code:

Module m = current
Object obj

bool isReq = obj."isRequirement"
if (isReq){
obj.attrDXLName = "SR-" probeAttr_(obj, "Absolute Number")
}
else{
obj.attrDXLName = ""
}

regards,
Alex

llandale - Fri Jun 22 15:59:47 EDT 2012
I guess I should read the entire code.

In AttrDXL and Layouts, variable "obj" is defined to mean "this" object. If you remove "Object obj" then the pre-defined (in global context) variables is used and it should work. And I see you don't need "Module m = current" since you don't use "m" anywhere.

-Louie

SystemAdmin - Sat Jun 23 08:00:03 EDT 2012
hi Louie,
that is my entire code. As I mentioned, I'm a newbee in DXL and DOORS. Respectively my projects are really small, because I try to learn by doing on my own.

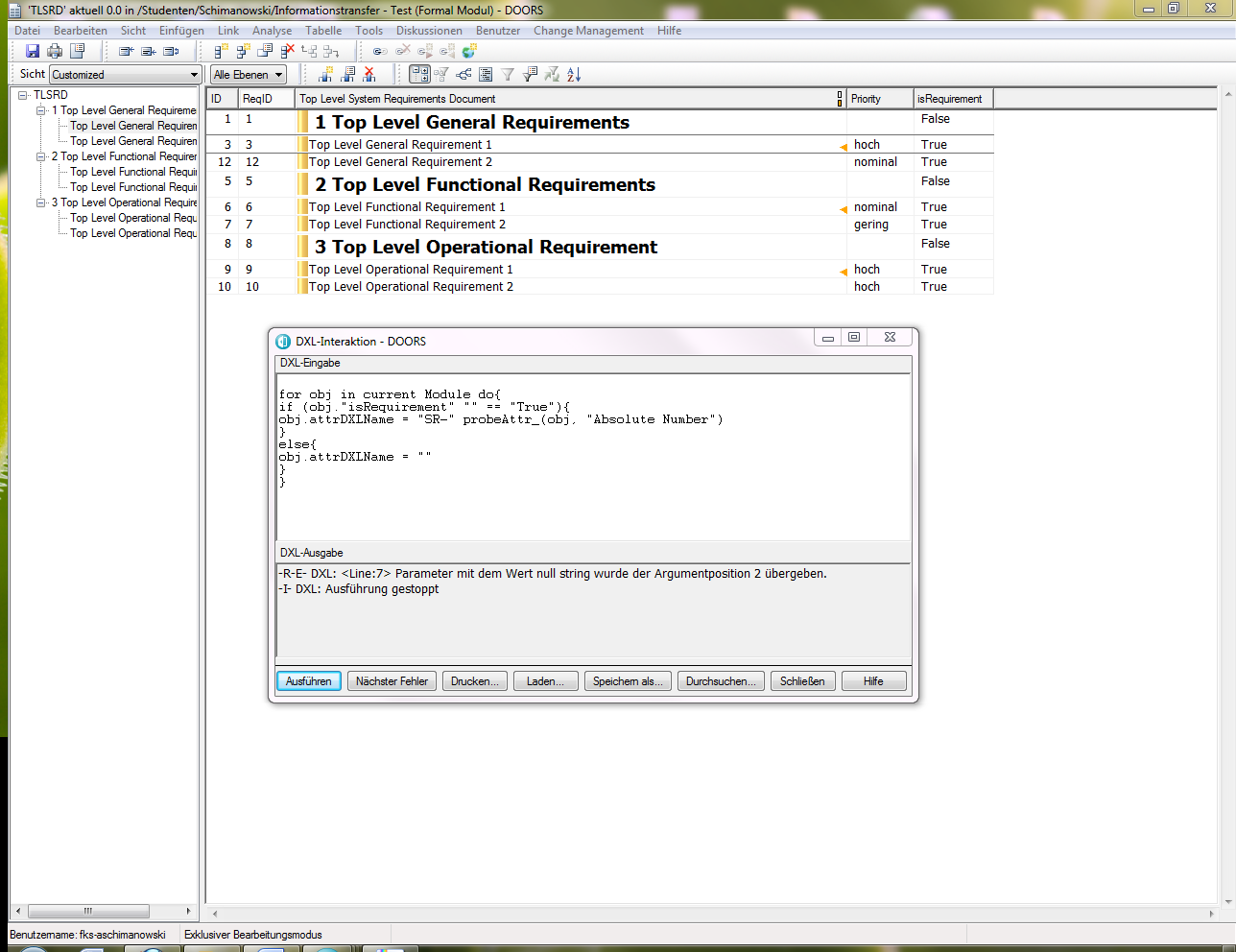

I attached a screenshot, which displays the module and the dxl code. The column "ID" gives the "Object Identifier" , "ReqID" gives the "Absolute Number", "isRequirement" gives the "isRequirement" attribute.
1. The condition if... else... is ok. I figured it out by changing the value of "isRequirement" in the Module, so the error message refers to an other line.
2. probeAttr_(obj, "Absolute Number") probes the readability of "Absolute Number" attribute and returns empty string if not readable. Which output does it produce in the case, it is readable? The value of the attribute also as a string?
3. attrDXLName refers to the attribute value under considering. Then, a definition of an attribute of type string, e.g. ReqID, is necessary, right?

By executing the code, as shown in the screenshot. I got a an error:

-R-E- DXL: null string parameter was passed into argument position 2

-Alex

llandale - Mon Jun 25 13:19:46 EDT 2012
There are 4 classes of DXL: "Trigger", "Layout", "Attr-DXL", and what I call "On-Demand"; these classes are determined by how the code is initiated. You are not ready for Triggers. Layout is code in a column stored in a view. Attr-DXL is code stored in an attribute and determines it's value. Attr-DXL and Layouts are very similar, they fire when there is a request for an object value (Attr-DXL is superior). On-Demand is code you run from the DXL interaction window and from various menues.

Your screen shot shows you running code from the interaction window and thus is "On-Demand". I see you are getting a run-time error (-R-E-) and I'm pretty sure it says "attrDXLName" is null at line 7.

The pre-defined "obj" and "attrDXLName" variables applies ONLY to code running as an Attr-DXL. Since you are running "on-demand" those values are null. You create Attr-DXL via the Edit menu >>Attributes menu. Create a string attribute named lets say "MyUniqueId", click the "Attr-DXL" button, http://Browse.. New, and paste your code into that DXL window (that window looks somewhat different than this one); then same that attribute. Then insert that attyribute into your view, then presumably save the view.

-Louie

Forget all that.

Do what most folks do and use the Object Identifier as your unique Requierments ID. I see that your "ID" field looks exactly like your "Absolute Number" field. You should edit the module, File menu >>Properties, and add a "Prefix" to the module, lets say "SR-". You will then see the "ID" change, and viola you can now get rid of your attr DXL which does the same thing.

Object Identifier is composed of the Module prefix concated with the Absolute Number.

By convention you should make sure your Prefixes in the project are as unique as are your module names. Ending Prefixes with "-" or "_" is a no brainer.
