Need help in applyting color

Please help...This is urgent..

I have a layout DXL column which contains Object Text, Object heading and tables.

Issue is some of the text in Object headings and Objcet text is Striked out and some underlined. I want to apply red color to striked off text and blue color to underlined text.

Any ideas..
Joenar1 - Fri Nov 04 13:32:12 EDT 2011

Re: Need help in applyting color
SystemAdmin - Fri Nov 04 13:40:59 EDT 2011

Re: Need help in applyting color
Joenar12 - Fri Nov 04 17:03:59 EDT 2011

Re: Need help in applyting color
Mathias Mamsch - Fri Nov 04 17:12:23 EDT 2011

You can set the color table in the RTF and use displayRichWithColor to display colored text. Try this code in a DXL Layout:

string sFontTable = "{\\rtf1{\\colortbl;\\red255\\green0\\blue0;\\red0\\green255\\blue0;\\red0\\green0\\blue255;}"

displayRichWithColor sFontTable "{\\b\\cf1 Hello in Bold Red}"
displayRichWithColor sFontTable "{\\strike\\cf2 Hello in Strike Green}"
displayRichWithColor sFontTable "{\\ul\\cf3 Hello in Underlined Blue}"

Regards, Mathias

Mathias Mamsch, IT-QBase GmbH, Consultant for Requirement Engineering and D00RS

Re: Need help in applyting color
Joenar12 - Fri Nov 04 18:12:16 EDT 2011

string sFontTable = "{\\rtf1{\\colortbl;\\red255\\green0\\blue0;\\red0\\green255\\blue0;\\red0\\green0\\blue255;}"

displayRichWithColor sFontTable "{\\b\\cf1 Hello in Bold Red}"
displayRichWithColor sFontTable "{\\strike\\cf2 Hello in Strike Green}"
displayRichWithColor sFontTable "{\\ul\\cf3 Hello in Underlined Blue}"

Re: Need help in applyting color
Mathias Mamsch - Fri Nov 04 19:35:09 EDT 2011

Hmm ... That is not an easy problem. Manipulating richText is always hard. In this case one way would probably be to replace the richText keyword "\\strike" by "\\strike\\cf1" and the keyword "\\ul" by "\\ul\\cf2" ... however you would need to do some sanity checks to make sure that you do have an separator after the word and no backslash before the word. You could also iterate through the richText using the builtin functions and rebuild the string, but you might loose some formatting there. Note that you do not want the below function to work on OLE objects (it will run endlessly slow). So you might want to skip coloring for objects containing OLE. There are many optimization possibilities in below code, it just might give you a start.

Regards, Mathias

Some quickly scribbled example code here:

string sFontTable = "{\\rtf1{\\colortbl;\\red255\\green0\\blue0;\\red0\\green255\\blue0;\\red0\\green0\\blue255;}"

string replace (string sSource, string sSearch, string sReplace, bool doReplace(string, int, int)) {
    int iLen = length sSource
    if (iLen == 0) return ""

    int iLenSearch = length(sSearch)

    if (iLenSearch == 0) {
        //raiseError ("Parameter error", "in strings.inc/replace: search string must not be empty")
        return ""
    }

    // read the first char for latter comparison -> speed optimization
    char firstChar = sSearch[0]

    Buffer s = create()
    int pos = 0, d1,d2;
    int i

    while (pos < iLen) {
        char ch = sSource[pos];
        bool found = true

        if (ch != firstChar) {pos ++; s+= ch; continue}
        for (i = 1; i < iLenSearch; i++)
           if (sSource[pos+i] != sSearch[i]) { found = false; break }
        if (!found || !doReplace(sSource, pos, iLenSearch) ) {pos++; s+= ch; continue}
        s += sReplace
        pos += iLenSearch
    }

    string result = stringOf s
    delete s
    return result
}

// print richText (current Object)."Object Text"
string test = "{\\rtf1\\ansi\\ansicpg1252\\deff0\\deflang1031{\\fonttbl{\\f0\\fnil\\fcharset0 Tahoma;}}
\\viewkind4\\uc1\\pard\\f0\\fs20 This \\\\\\\\strike text is not \\\\striked but {\\\\\\strike dd}d is \\\\ul is also not
\\\\\\\\ul. But this is \\strike striked \\strike0 and \\ul that\\ulnone  is underlined!\\par
}"

bool checkTerminators(string s, int pos, int len) {
    // there is a backslash before our control word, check if it is escaped
        if (pos > 0 && s[pos-1] == '\\') {
                // count backslashes before the word
                int i, nr = 1; for (i = pos-1; s[i] == '\\'; i--) nr++
                // check if it is unequal
                if (nr % 2 == 1) {
                        // print "Unequal backslash count found at " pos "(" (s[i:pos+len]) ").\n"
                } else {
                        // print "Equal backslash count found at " pos "(" s[i:pos+len] ").\n"
                        return false

                }
        }

        // check for terminator after our search
        char term = s[pos+len]
        if (term != ' ' && term != '{' && term != '\\') {
              // print "No separator found at " pos " after '" s[pos:pos+len] "'\n";
              return false
        }
        print "Replacing stuff at " pos "\n"
        return true
}

// print test

test = replace(test, "\\strike", "\\strike\\cf1", checkTerminators)
test = replace(test, "\\strike0", "\\strike0\\cf0", checkTerminators)
test = replace(test, "\\strikenone", "\\strikenone\\cf0", checkTerminators)
test = replace(test, "\\ul", "\\ul\\cf2", checkTerminators)
test = replace(test, "\\ul0", "\\ul0\\cf0", checkTerminators)
test = replace(test, "\\ulnone", "\\ulnone\\cf0", checkTerminators)

// print test
displayRichWithColor sFontTable  test

Mathias Mamsch, IT-QBase GmbH, Consultant for Requirement Engineering and D00RS

Re: Need help in applyting color

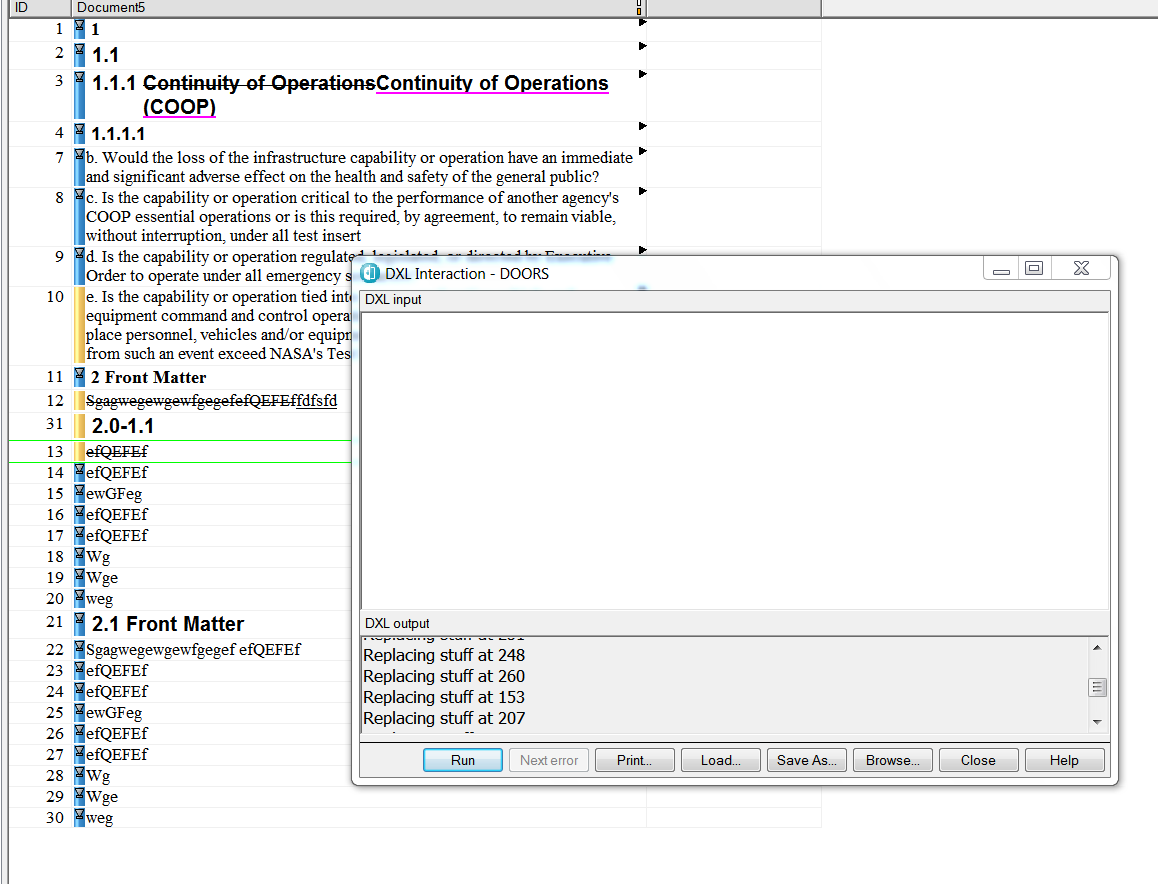

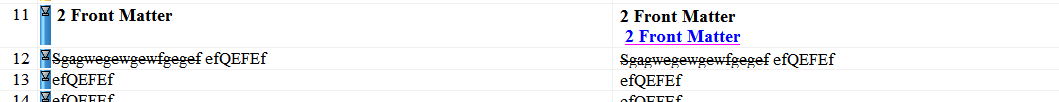

Joenar12 - Fri Nov 04 20:39:01 EDT 2011

string sFontTable = "{\\rtf1{\\colortbl;\\red255\\green0\\blue0;\\red0\\green255\\blue0;\\red0\\green0\\blue255;}"

string replace (string sSource, string sSearch, string sReplace, bool doReplace(string, int, int)) {
    int iLen = length sSource
    if (iLen == 0) return ""

    int iLenSearch = length(sSearch)

    if (iLenSearch == 0) {
        //raiseError ("Parameter error", "in strings.inc/replace: search string must not be empty")
        return ""
    }

    // read the first char for latter comparison -> speed optimization
    char firstChar = sSearch[0]

    Buffer s = create()
    int pos = 0, d1,d2;
    int i

    while (pos < iLen) {
        char ch = sSource[pos];
        bool found = true

        if (ch != firstChar) {pos ++; s+= ch; continue}
        for (i = 1; i < iLenSearch; i++)
           if (sSource[pos+i] != sSearch[i]) { found = false; break }
        if (!found || !doReplace(sSource, pos, iLenSearch) ) {pos++; s+= ch; continue}
        s += sReplace
        pos += iLenSearch
    }

    string result = stringOf s
    delete s
    return result
}

// print richText (current Object)."Object Text"
string test = "{\\rtf1\\ansi\\ansicpg1252\\deff0\\deflang1031{\\fonttbl{\\f0\\fnil\\fcharset0 Tahoma;}}
\\viewkind4\\uc1\\pard\\f0\\fs20 This \\\\\\\\strike text is not \\\\striked but {\\\\\\strike dd}d is \\\\ul is also not
\\\\\\\\ul. But this is \\strike striked \\strike0 and \\ul that\\ulnone  is underlined!\\par
}"

bool checkTerminators(string s, int pos, int len) {
    // there is a backslash before our control word, check if it is escaped
        if (pos > 0 && s[pos-1] == '\\') {
                // count backslashes before the word
                int i, nr = 1; for (i = pos-1; s[i] == '\\'; i--) nr++
                // check if it is unequal
                if (nr % 2 == 1) {
                        // print "Unequal backslash count found at " pos "(" (s[i:pos+len]) ").\n"
                } else {
                        // print "Equal backslash count found at " pos "(" s[i:pos+len] ").\n"
                        return false

                }
        }

        // check for terminator after our search
        char term = s[pos+len]
        if (term != ' ' && term != '{' && term != '\\') {
              // print "No separator found at " pos " after '" s[pos:pos+len] "'\n";
              return false
        }
        print "Replacing stuff at " pos "\n"
        return true
}

// print test

test = replace(test, "\\strike", "\\strike\\cf1", checkTerminators)
test = replace(test, "\\strike0", "\\strike0\\cf0", checkTerminators)
test = replace(test, "\\strikenone", "\\strikenone\\cf0", checkTerminators)
test = replace(test, "\\ul", "\\ul\\cf2", checkTerminators)
test = replace(test, "\\ul0", "\\ul0\\cf0", checkTerminators)
test = replace(test, "\\ulnone", "\\ulnone\\cf0", checkTerminators)

// print test
displayRichWithColor sFontTable  test

Re: Need help in applyting color
Mathias Mamsch - Fri Nov 04 21:38:44 EDT 2011

Re: Need help in applyting color
rmoskwa - Thu Nov 10 13:23:17 EST 2011

Re: Need help in applyting color
Mathias Mamsch - Fri Nov 11 04:21:44 EST 2011

Re: Need help in applyting color
SystemAdmin - Mon Nov 12 11:20:46 EST 2012

hello,

I wondering how one would apply color to text; meaning I can apply color but once I "indentAllParagraphs" the text no longer is being display.

Thank you,
Jim


// DXL generated by DOORS traceability wizard on 11 November 2012.
// Wizard version 2.0, DOORS version 9.3.0.7
pragma runLim, 0
const int indentStep = 360
Buffer indentBuff = create
Buffer lineBuff = create
lineBuff = "______________________"
const Regexp LINKRegx = regexp2 "(parent2child|child2parent|See also)"

string indentAllParagraphs(string s, bool addBullets, int addedIndent)
{
    int numParas = 0
    RichTextParagraph rtp
    indentBuff = s
    for rtp in s do
    {
        numParas++
        Buffer t = create()
        t += rtp.text
        if (length(t) > 0 )
        {
            bool hasBullet = rtp.isBullet
            int  indentLev = rtp.indentLevel
            indentBuff = applyTextFormattingToParagraph(indentBuff, hasBullet, indentLev+addedIndent, numParas)
        }
        delete(t)
    }
    return (numParas == 0 ? "" : tempStringOf(indentBuff))
}

int lines[4] = {0, 0, 0, 0}
void adjustLines(int depth, showAtDepth) {
    int count
    for (count = 0; count < 4; count++) {
        while (lines[depth-1] < lines[count]) {
            if (depth == showAtDepth) displayRich("\\pard " " ")
            lines[depth-1]++
        }
    }
}

void showIn(Object o, int depth) {
    Link l
    LinkRef lr
    ModName_ otherMod = null
    Module linkMod = null
    ModuleVersion otherVersion = null
    Object othero
    string s = null
    bool doneOne = false
    string linkModName = "*"
    for lr in all(o<-linkModName) do {
        otherMod = module (sourceVersion lr)
        if (!null otherMod) {
            if ((!isDeleted otherMod) && (null data(sourceVersion lr))) {
                load((sourceVersion lr),false)
            }
        }
    }
    for l in all(o<-linkModName) do {
        if(LINKRegx name(module l)) continue

        otherVersion = sourceVersion l
        otherMod = module(otherVersion)
        if (null otherMod || isDeleted otherMod) continue
        othero = source l
        if (null othero) {load(otherVersion,false)}
        othero = source l
        if (null othero || isDeleted othero) continue
        doneOne = true
        {
            displayRich tempStringOf applyTextFormattingToParagraph(lineBuff, false, (depth-1) * indentStep, 0)
            s = name(otherMod)
            if (isBaseline(otherVersion)) {s = s " [" versionString(otherVersion) "]"}
            s = indentAllParagraphs(s, false, (depth-1) * indentStep)
            if (s == "") {displayRich("\\pard " " ")}
            else {
                                s = s "-" probeRichAttr_(othero,"Absolute Number", false)
                                if( name(module(o)) == name(module(othero)) ) {s = "(" s ")"} //Apply color
                                s = indentAllParagraphs(s, false, (depth-1) * indentStep)
                                displayRich("\\pard " s)
                        }
        }
        lines[depth-1] += 2
        if ( depth < 4 ) {showIn(othero, depth+1)}
    }
    if (depth == 1) {
        ExternalLink extLink
        doneOne = false
        for extLink in o<-"" do {
            if (!doneOne) {
                displayRich("\\pard " "{\\b External Links:}")
                doneOne = true
            }
        }
    }
}

showIn(obj,1)

delete LINKRegx
delete indentBuff
delete lineBuff
